產品詳細頁進口高低溫箱
簡要描述:
進口高低溫箱是航空、汽車、家電、科研等領域必備的測試設備,用于測試和確定電工、電子及其他產品及材料進行高溫、低溫、或恒定試驗的溫度環境變化后的參數及性能。
型號:
瀏覽量:580
產品更新時間:2022-09-20

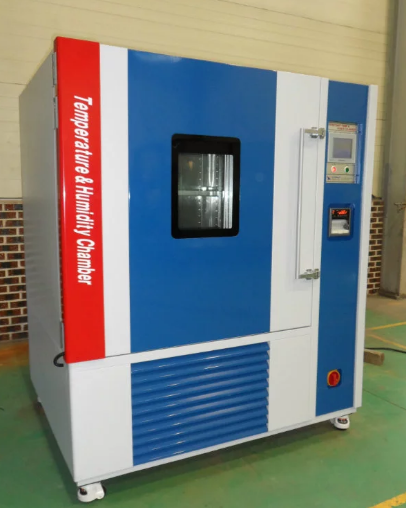

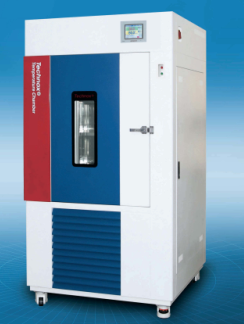

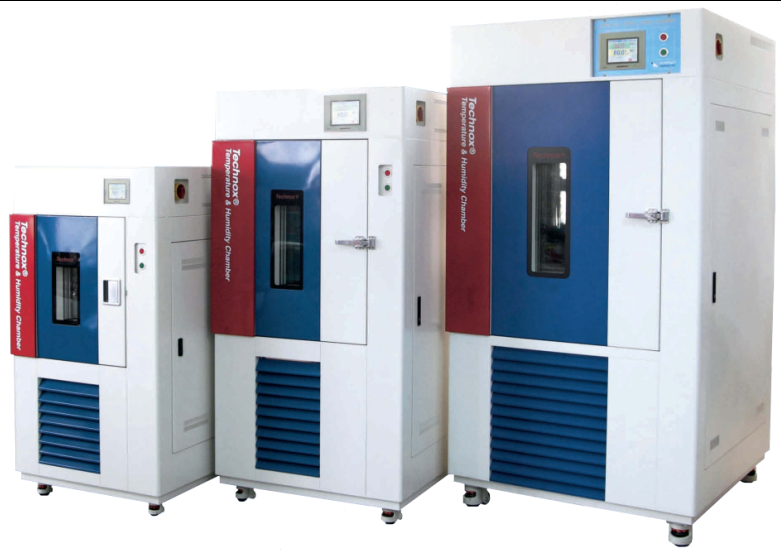

進口高低溫箱Technical Proposal(技術指標)
Model(型號)TX-TH-500T
1 Key Technical Specifications/ 主要性能參數:
1.1 Equipment: Temperature and humidity test chamber設備名稱:恒溫恒濕試驗箱
1.2 Model: TX-TH-500T
1.3 Useful capacity: 500L approx有效容積:約 500升
1.4 Interior dimension: W800mm×D800mm×H800mm;
內部尺寸:寬 800mm×深 800mm×高 800mm;
Exterior dimension: W1400mm×D1350mm×H1750mm;
外部尺寸:寬 1400mm×深 1350mm×高 1750mm;
1.5 Temperature range: -10℃~+150℃; 溫度范圍:-10℃~+150℃
1.6 Temperature fluctuation: ≤±0.5℃; 溫度波動度:≤±0.5℃;
1.7 Temperature uniformity: ≤±2.0℃; 溫度均勻度:≤±2.0℃
1.8 Temperature deviation: ≤±2.0℃; 溫度偏差:≤±2.0℃;
1.8.1 濕度精度:1.0%,
1.8.2 濕度偏差:≤2%RH
1.9 Humidity range: from 20% to 98% in the temperature range +10℃ to +90℃
濕度范圍:從 20%到 98%在環境溫度范圍:+10℃到+90℃
Note: The above performance is measured at steady state, without any load and heat dissipation;
1.11 升降溫時間:0℃~+120℃ ≥3.0℃/min (空載 非線性)
注:上述指標在室溫+25℃時測量,溫濕度性能測試根據標準 IEC60068-3;傳感器放置在空氣出風口處。
2 Cabinet Structural Features/ 箱體 結構特性:
2.1 Housing: mono-block construction which comprises all systems necessary for operation; The outerhousing will be made of good quality galvanized sheet steel which is inside and outside primered andpainted to a standard finish with high quality materials. The exterior surface will have high wear resistance
箱體結構:?jiǎn)我唤Y(jié)構,包括所有箱體工作所必須的系統。外部框架由高質量電鍍鋼板組成,它外部涂有高質量的底漆和涂層。外部表面具有強抗腐蝕能力,白灰色,RAL-7035。
2.2 Test space: the internal test space will be made of non magnetic SUS-304 stainless steel with no paint.All the seams will be TIG welded and vapor tight. The surface will be well polished.
測試空間:箱體內膽材料為 SUS304號不銹鋼。所有縫隙都由 TIG(鎢極惰性氣體保護電弧焊)無縫焊接完成,保證密封。表面被很好的刨光。
2.3 Outior shell materials: SUS304 stainless steel plate t=1.5mm;
外部材料;SUS304 不銹鋼板,厚度=1.5mm;
2.4 Insulation: the insulation material will be of low 'k' factor, high intensity and non hygroscopic nature. Theinsulation will be multi layered with double vapor barrier. Asbestos free mineral fiber insulation will beused
保溫材料:使用低“K”值的絕緣材料,高強度和不可燃、不沉積特性。這種絕緣材料為多層分層,每層兩面都有蒸汽絕緣。
2.5 Door: fully-opened and single wing type, double silicone seal, hinges and lock.
箱門:全開單翼型,帶有雙層硅橡膠密封和門鎖。白灰色,RAL-7035。
2.6 Door useful dimensions: 1000 mm W x1000 mm H;
門的有效尺寸:1000 mm(寬) x 1000 mm(高);
2.7 Inspection windows: the chamber will be provided with one multilayer toughened glass inspectionwindows with built-in heaters. The size of the window glasses is 1200 x 1300 mm;The inspection window is equipped with an electric heating element on the surface of the glass able to prevent the condensate and frost formation;
觀測窗:箱體帶有一個多層玻璃觀測窗,帶有內部加熱器。尺寸:為 400 x 300 mm;
玻璃表面的電子加熱可以防止水的冷凝和結霜;
2.8 Internal lighting: one lamp, with control switch placed on the control panel.內部照明:1 個,控制開關在箱體外部控制面板上;
2.9 Two shelf: Height is adjustable. shelf support load: 30 kg uniformly distributed;2個隔架,可調整高度。隔架承重:可均勻承重 30 公斤;
2.10 Cable port: One porthole (Ф100mm), by low thermal conductivity materials and equipped with blind plugs.測試孔:1個直徑為 100mm,帶有由絕緣材料做成的絕緣塞;(在箱體右側)
2.11 Four castors for easy movement.配備 4個腳輪,方便箱體自由移動;
2.12 Pressure compensation system: the chamber is equipped with a pressure balance system which openswhen there is pressure imbalance between the test space and outside. The system is mechanicallydesigned to automatically operate.壓力補償平衡系統:箱體配有一個壓力補償系統,當箱體內外壓力不平衡時,系統將會自動運行。
2.13 Power board and machine group positioning: mono-block construction;
電源控制板和機組位置:與箱體整體化;
3 Air-conditioning System/ 空氣調節裝置:
3.1 Regulation and control: Forced circulation for temperature and humidity regulation; Independent PIDregulation to achieve consecutive cooling and heating capability; No energy waste deriving from extraheating to compensate extra cooling;調節和控制:強制對流調溫調濕方式;獨立的冷端和熱端 PID 調節,熱量和冷量均可連續調節,避免了制冷量和加熱量對沖而造成的能源浪費;
3.2 Air-circulation equipment: Powerful blowers driven by external motors with stainless steel shafts;
空氣循環裝置:帶有不銹鋼軸的外部電機驅動的高效率風扇;
3.3 Heating: Nickel-chromium alloy heating wire, controlled by SSR; protected by failure-safe thermostats;加熱:鎳鉻金屬絲加熱器,SSR 控制;配備故障保護溫度開關;
3.4 Cooling mode: Water cooling;冷卻模式:水冷卻;
3.5 Heat exchanger: tube-finned heat exchanger which exchanges the heat with air inside the chamber熱交換器:管片式熱交換器同室內空氣進行熱交換;
3.6 Humidifier: Low pressure steam generator is equipped with demineralizer, boiler and high temperaturefailure-safe thermostats;
加濕器:低壓蒸汽發生器配有軟化過濾器,加熱器,加熱筒體以及高溫保護裝置等;
3.7 Dehumidification: The dehumidification is realized by means of a "cold finger" evaporator, separated fromthe cooling evaporator, on which the excessive water vapor is forced to condensate.
除濕系統:獨立的去濕系統是通過一種叫做“冷指”的蒸發器來完成,去濕盤管與冷卻盤管相互獨立。它使箱內多余的水蒸氣冷凝下來;
3.8 Humidification water supply: Manually water supply to humidification water tank or self feeding by townwater. humidification water recycling, reducing water consumption
加濕水補水方式:環境箱配備自帶的儲水箱,可以手動添加純凈水到儲水箱或者自來水自動通過環境箱配備的水處理裝置;加濕水循環使用,降低加濕水的消耗量;
3.9 Town water purification system: town water through chamber integrated softener.自來水處理系統:自來水自動通過環境箱配備的水處理裝置;
3.10 Stainless steel condensate tray
不銹鋼凝水盤;
4 Refrigeration System/ 制冷系統:
4.1 Refrigeration System Composition:
制冷系統組成:
4.1.1 Refrigerant: environment-friendly fluorine coolant R404a;
制冷劑:環保制冷劑 R404a
4.1.2 Refrigeration compressor: German blog semi closed compressor 1p
制冷壓縮機: 美國全封閉壓縮機 1P
4.1.2。1 Use of 1p to control humidity 美國谷輪壓縮機1P 控制濕度使用
4.1.3 Condensation mode: Air-cooled condenser;
冷凝模式:風冷冷凝器
4.1.4 Refrigeration mode: Mechanical compression single stage system;
制冷方式:機械壓縮雙級制冷
4.2 An automatic protection design is incorporated into the cooling system and realized by injecting liquidrefrigerant into compressor suction pipe. This design can prevent compressor from overheating during thecooling down period from high temperature environment.制冷系統的設計采用了全自動的保護措施。通過將液體制冷劑噴射到壓縮機吸氣管路來防止壓縮機在高溫環境冷卻階段產生過熱現象;
(Demonstration of Refrigeration System Design)
(供參考的制冷系統設計)
5 Control system/ 控制系統:
5.1 Sampling sensor/傳感器:
5.1.1 Temperature measurer and sensor: Shielded heat resistance Pt100 x 1;
